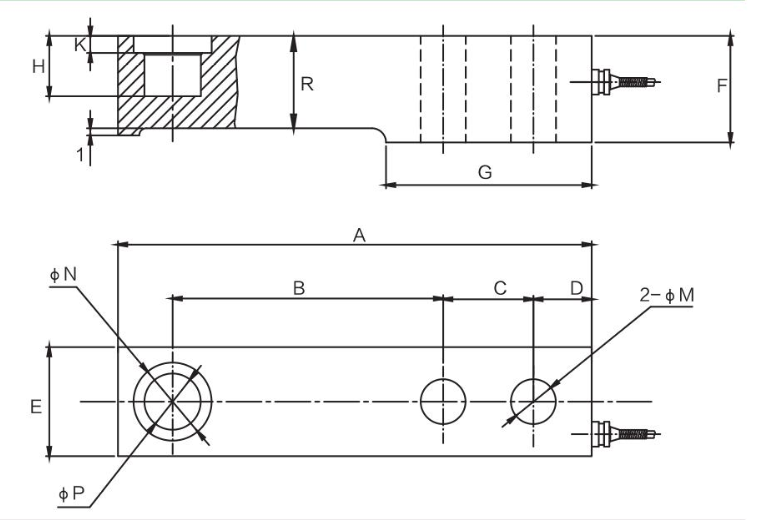

Range（kN）

Range（t）

A

B

C

D

E

F

G

H

K

M

N

P

R

2.5-10

0.25-1

mm

133.4

76.2

25.4

16.4

30.7

30

57.9

17

4.8

12.7

22

15.9

28

20

2

mm

136.7

76.2

25.4

16.7

36.8

36.6

57.9

23

9.5

12.7

22

15.9

33

30

3

mm

139.7

79.2

25.4

16.7

39

36.6

57.9

23

9.5

15

22

15.9

34.5

50

5

mm

171.5

95.2

38.1

16.7

42.9

43

73.8

29.4

11

19

34.9

22.2

40

Specifications

Rated Output

2.0mV/V±1%

Zero Balance

±1%F.S

Comprehensive Precision

0.03%F.S

Input Impedance

381±4Ω

Linearity/ Hysteresis

±0.03%F.S

Output Impedance

350±1Ω

Repeatability

±0.03%F.S

Insulation Impedance

≥5000MΩ

Creep

±0.03%F.S/30min

Recommended Excitation Voltage

5～15V/DC

Temp. Effect On Zero

±0.02%/10℃

Compensated temp. Range

-30℃～+70℃

Temp. Effect On Output

±0.02%/10℃

Safe Overload

150%F.S

Connection

Excitation：+ Red - Black        Shield： Thick Yellow

Signal： + Green - White
